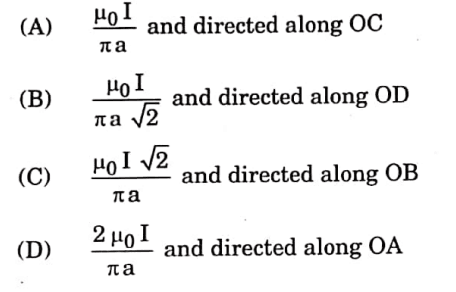

Four long straight thin wires are held vertically at the corners A, B, Cand D of a square of side ‘a’, kept on a table and carry equal current T.The wire at A carries current in upward direction whereas the current inthe remaining wires flows in downward direction. The net magnetic fieldat the centre of the square will have the magnitude :

Distance from centre OOO to each corner of the square:r=a2r=\frac{a}{\sqrt{2}}

Magnetic field due to one long straight wire at distance rrr:B=μ0I2πrB=\frac{\mu_0 I}{2\pi r}

Substituting r=a2r=\frac{a}{\sqrt{2}}​:B0=μ0I2π(a/2)=μ0I22πa=μ0I2πaB_0=\frac{\mu_0 I}{2\pi (a/\sqrt{2})} =\frac{\mu_0 I\sqrt{2}}{2\pi a} =\frac{\mu_0 I}{\sqrt{2}\pi a}​

So each wire produces field B0B_0 at the centre.

Direction of Fields

Using right-hand rule:

  • Wire at A (current upward) → field at centre along OB
  • Wire at C (current downward) → field at centre along OB
  • Wire at B (current downward) → field along OA
  • Wire at D (current downward) → field along OC

Resolving components and adding vectorially:Bnet=2B0B_{\text{net}} = 2B_0 =2(μ0I2πa)=2μ0Iπa= 2\left(\frac{\mu_0 I}{\sqrt{2}\pi a}\right) = \frac{\sqrt{2}\mu_0 I}{\pi a}

Direction: along OB

Final Answer:

μ0I2πa directed along OB\boxed{\frac{\mu_0 I\sqrt{2}}{\pi a} \text{ directed along OB}}
